309S (S30908) is a low-carbon version of 309 stainless steel with the following composition:
| Element | Percentage |
|---|---|
| Carbon (max) | 0.08 |
| Chromium | 22.0 – 24.0 |
| Nickel | 12.0 – 15.0 |
| Manganese (max) | 2.00 |
| Silicon (max) | 0.75 |
| Phosphorus (max) | 0.045 |
| Sulfur (max) | 0.030 |
Mechanical Properties:
| Property | Value |
|---|---|
| Tensile Strength (min) | 515 MPa (75 ksi) |
| Yield Strength (min) | 205 MPa (30 ksi) |
| Elongation (min) | 40% |
| Hardness (max) | 159 Brinell |
309S stainless steel is widely used in:
309S offers excellent oxidation resistance up to 1900°F (1038°C) under non-cyclic conditions. It maintains stability at temperatures as high as 980°C, making it essential for industrial environments.
The alloy also provides:
309S is typically produced through controlled rolling processes. Available forms include:
309S has excellent weldability due to its low carbon content, which minimizes carbide precipitation. It can be welded using standard fusion and resistance welding methods. When a weld filler is needed, AWS E/ER 309 and 310 are most often specified.
309S offers superior high-temperature performance compared to common grades like 304:
| Grade | Max Continuous Service Temperature |
|---|---|
| 309S | 2000°F (1093°C) |
| 304 | 1600°F (871°C) |

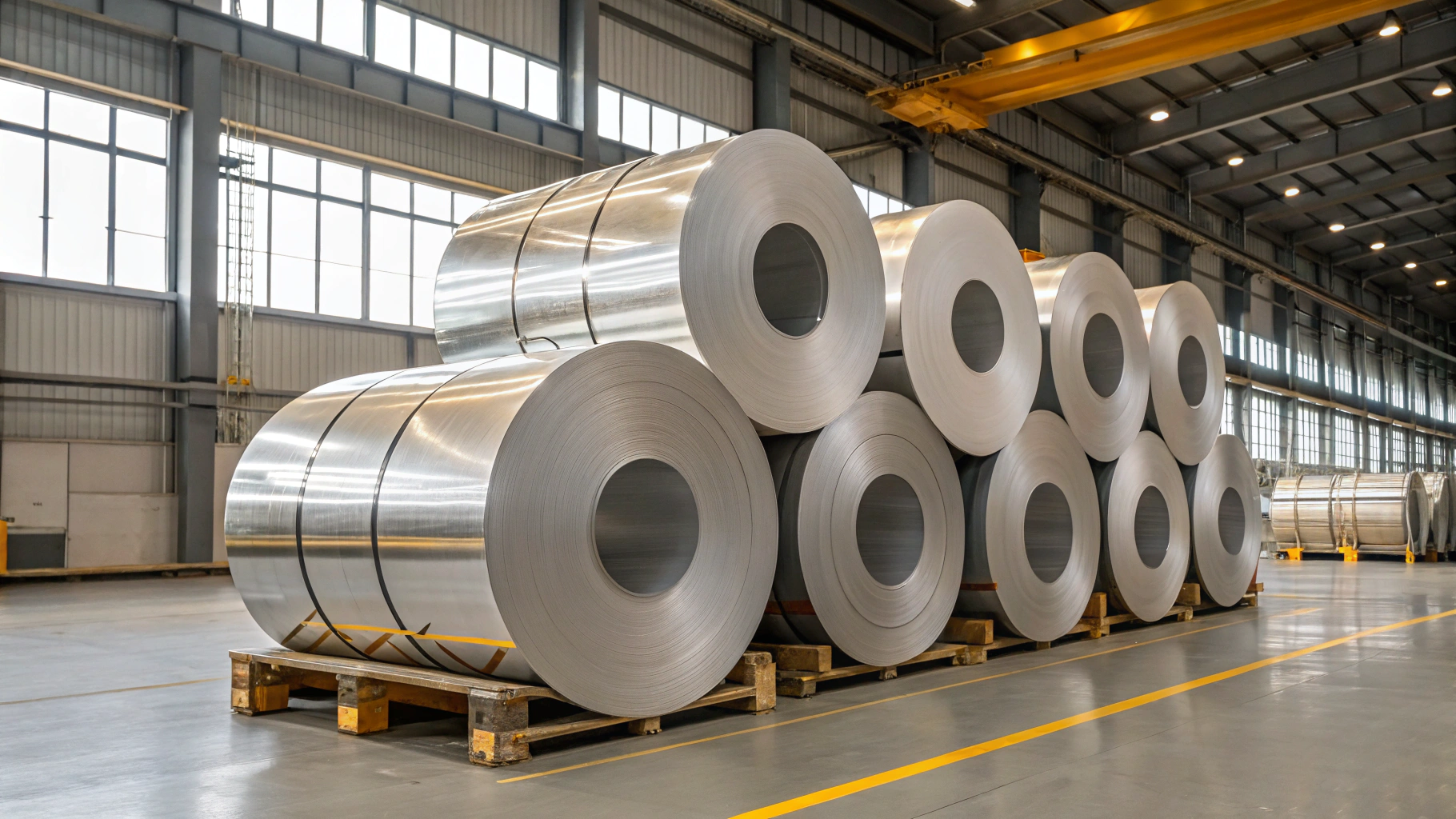

At HL Steel Company, we provide high-quality 309S (S30908) stainless steel plates and coils, ensuring optimal performance for your high-temperature and corrosion-resistant applications.
